基本型式

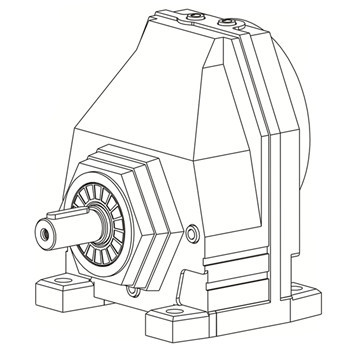

产品代号：RX..
产品说明：单级斜齿轮减速传动；底脚安装；减速比范围1.30～8.65；传递功率范围0.12～
45kW。
fundamental type
Product code: RX
Product Description: Single stage helical gear reduction drive; Foot installation; Reduction ratio range from 1.30 to 8.65; Transmission power range 0.12~45kW.

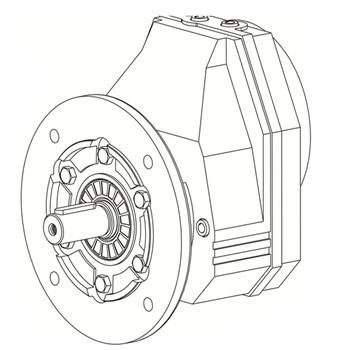

产品代号：RXF..
产品说明：单级斜齿轮减速传动；底脚安装；减速比范围1.30～8.65；传递功率范围0.12～45kW。
Product code: RXF
Product Description: Single stage helical gear reduction drive; Foot installation; Reduction ratio range from 1.30 to 8.65; The transmission power range is 0.12-45kW.

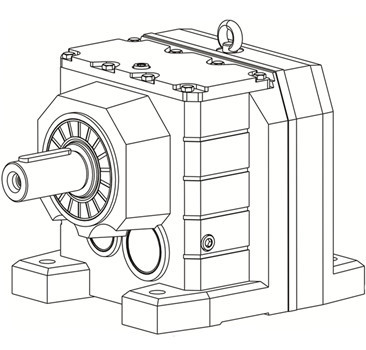

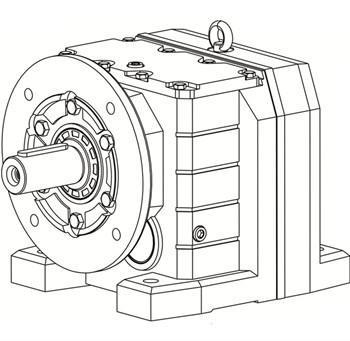

产品代号：R..
产品说明：两级或三级斜齿轮减速传动；底脚安装；减速比范围3.41～289.74；传递功率范围0.12～160kW。
Product code: R
Product Description: Two or three stage helical gear reduction drive; Foot installation; Reduction ratio range from 3.41 to 289.74; The transmission power range is 0.12-160kW.

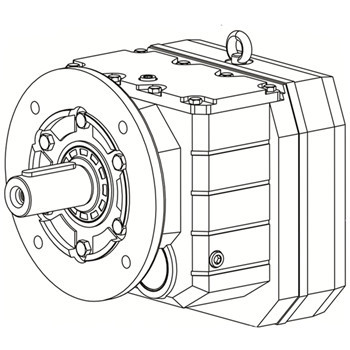

产品代号：RF..
产品说明：两级或三级斜齿轮减速传动；B5法兰安装；减速比范围3.41～289.74；传递功率范围0.12～160kW。
Product code: RF
Product Description: Two or three stage helical gear reduction drive; B5 flange installation; Reduction ratio range from 3.41 to 289.74; The transmission power range is 0.12-160kW.
产品代号：R..F
产品说明：两级或三级斜齿轮减速传动；B5法兰安装；减速比范围3.41～246.54；传递功率范围0.12～22kW。
Product code: R F
Product Description: Two or three stage helical gear reduction drive; B5 flange installation; Reduction ratio range from 3.41 to 246.54; The transmission power range is 0.12-22kW.
产品代号：RZ..
产品说明：两级或三级斜齿轮减速传动；B14法兰安装；减速比范围3.41～246.54；传递功率范围0.12～22kW。
Product code: RZ
Product Description: Two or three stage helical gear reduction drive; B14 flange installation; Reduction ratio range from 3.41 to 246.54; The transmission power range is 0.12-22kW.
输入型式

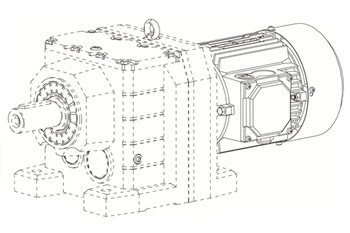

产品代号：Y..
产品说明：直联电机输入。直接将各种类型的电动机（如普通电机、刹车电机、防爆电机等）作为齿轮减速机的输入，这样可有效减小传动装置的外形尺寸。
Input type
Product code: Y
Product Description: Direct connected motor input. Directly using various types of motors (such as ordinary motors, brake motors, explosion-proof motors, etc.) as inputs for gear reducers can effectively reduce the external dimensions of the transmission device.

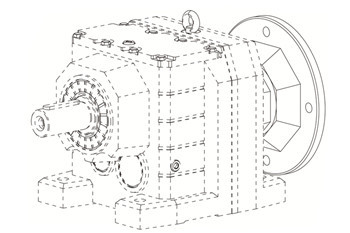

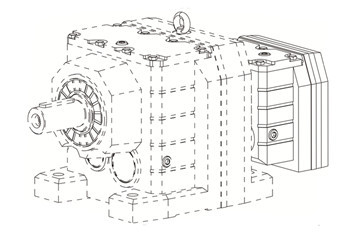

产品代号：AM..
产品说明：IEC法兰输入。通过一个AM输入模块，将标准IEC接口的电机与减速机连接。
Product code: AM
Product Description: IEC flange input. Connect the standard IEC interface motor to the gearbox through an AM input module.

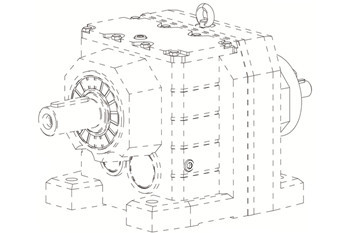

产品代号：AD..
产品说明：AD轴输入。通过一个AD轴输入模块，可实现链轮、皮带轮等方式作为减速机的输入。
Product code: AD
Product Description: AD axis input. Through an AD axis input module, it is possible to use sprockets, pulleys, and other methods as inputs for the gearbox.
组合应用
产品代号：R../RF..
产品说明：为得到特别低的输出转速，可以将RF减速机做为R减速机的输入。
Combination application
Product code: R/ RF
Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the R gearbox.

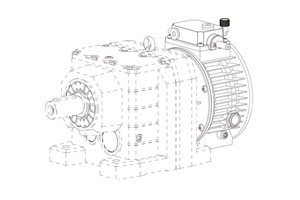

产品代号：R../UD..
产品说明：为得到特别低并且可以连续变化的输出转速，可以将UD无级变速器做为R减速机的输入。
Product code: R/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the R gearbox.
