基本型式

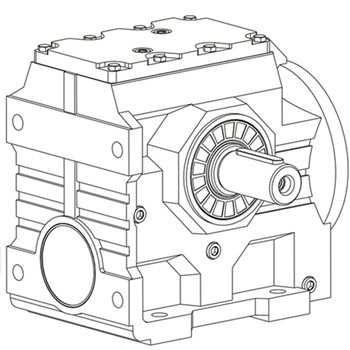

产品代号：S..
产品说明：两级斜齿轮蜗轮减速传动；底脚安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: S
Product Description: Two stage helical gear worm gear reduction drive; Foot installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

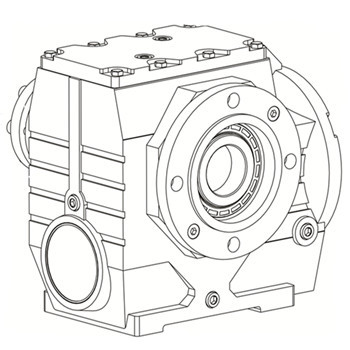

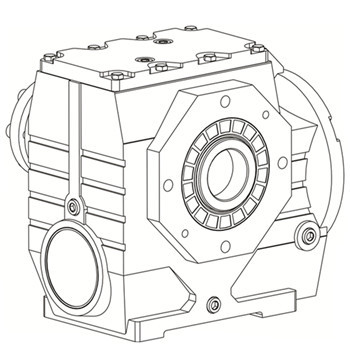

产品代号：SA..
产品说明：两级斜齿轮蜗轮减速传动；空心轴安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SA
Product Description: Two stage helical gear worm gear reduction drive; Hollow shaft installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

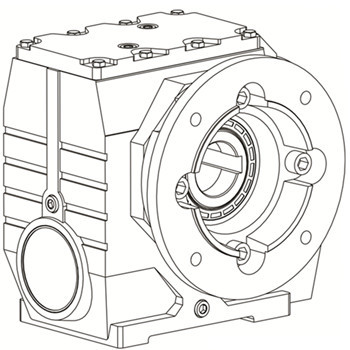

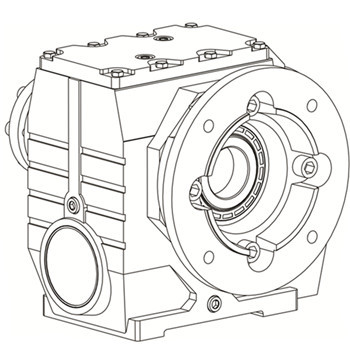

产品代号：SAF..
产品说明：两级斜齿轮蜗轮减速传动；B5法兰空心轴安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SAF
Product Description: Two stage helical gear worm gear reduction drive; Installation of B5 flange hollow shaft; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.
产品代号：SAZ..
产品说明：两级斜齿轮蜗轮减速传动；B14法兰空心轴安装；减速比范围7.28～288.00；传递功率范围0.12～22kW。
Product code: SAZ
Product Description: Two stage helical gear worm gear reduction drive; B14 flange hollow shaft installation; Reduction ratio range from 7.28 to 288.00; The transmission power range is 0.12-22kW.

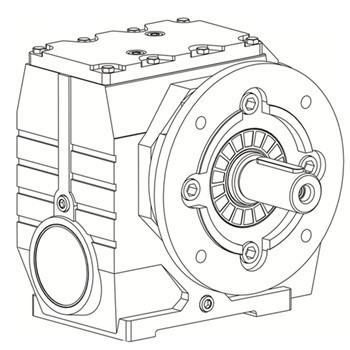

产品代号：SF..
产品说明：两级斜齿轮蜗轮减速传动；B5法兰安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SF
Product Description: Two stage helical gear worm gear reduction drive; B5 flange installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.

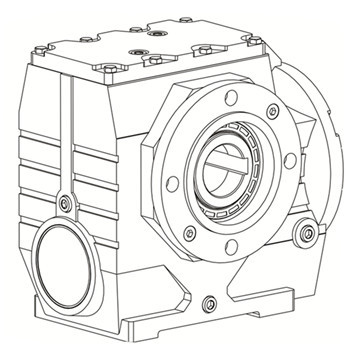

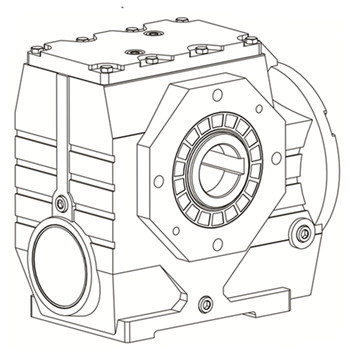

产品代号：SH..
产品说明：两级斜齿轮蜗轮减速传动；空心轴锁紧盘安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SH
Product Description: Two stage helical gear worm gear reduction drive; Installation of hollow shaft locking plate; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.
产品代号：SHF..
产品说明：两级斜齿轮蜗轮减速传动；B5法兰空心轴锁紧盘安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SHF
Product Description: Two stage helical gear worm gear reduction drive; Installation of B5 flange hollow shaft locking plate; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.
产品代号：SHZ..
产品说明：两级斜齿轮蜗轮减速传动；B14法兰空心轴锁紧盘安装；减速比范围6.80～288.00；传递功率范围0.12～22kW。
Product code: SHZ
Product Description: Two stage helical gear worm gear reduction drive; B14 flange hollow shaft locking plate installation; Reduction ratio range from 6.80 to 288.00; The transmission power range is 0.12-22kW.
输入型式
产品代号：Y..
产品说明：直联电机输入。直接将各种类型的电动机（如普通电机、刹车电机、防爆电机等）作为齿轮减速机的输入，这样可有效减小传动装置的外形尺寸。
Product code: Y
Product Description: Direct connected motor input. Directly using various types of motors (such as ordinary motors, brake motors, explosion-proof motors, etc.) as inputs for gear reducers can effectively reduce the external dimensions of the transmission device.

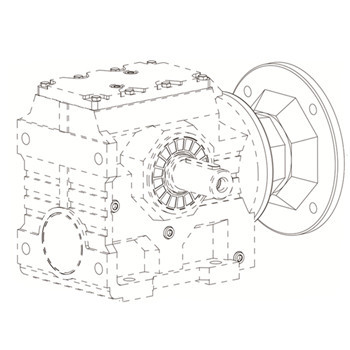

产品代号：AM..
产品说明：IEC法兰输入。通过一个AM输入模块，将标准IEC接口的电机与减速机连接。
Product code: AM
Product Description: IEC flange input. Connect the standard IEC interface motor to the gearbox through an AM input module.

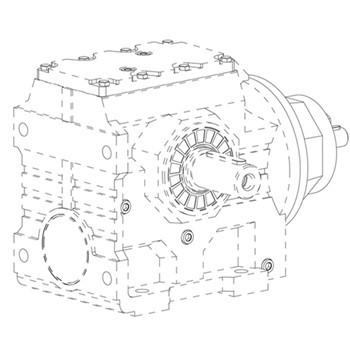

产品代号：AD..
产品说明：AD轴输入。通过一个AD轴输入模块，可实现链轮、皮带轮等方式作为减速机的输入。
Product code: AD
Product Description: AD axis input. Through an AD axis input module, it is possible to use sprockets, pulleys, and other methods as inputs for the gearbox.
组合应用

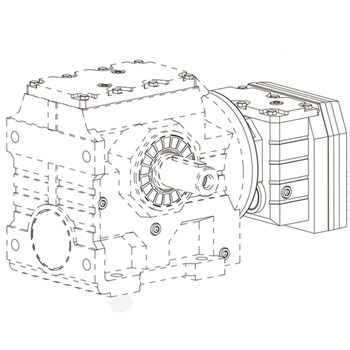

产品代号：S../RF..
产品说明：为得到特别低的输出转速，可以将RF减速机做为S减速机的输入。
Product code: S/ RF
Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the S gearbox.

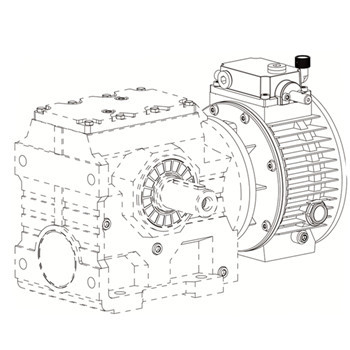

产品代号：S../UD..
产品说明：为得到特别低并且可以连续变化的输出转速，可以将UD无级变速器做为S减速机的输入。
Product code: S/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the S gearbox.
