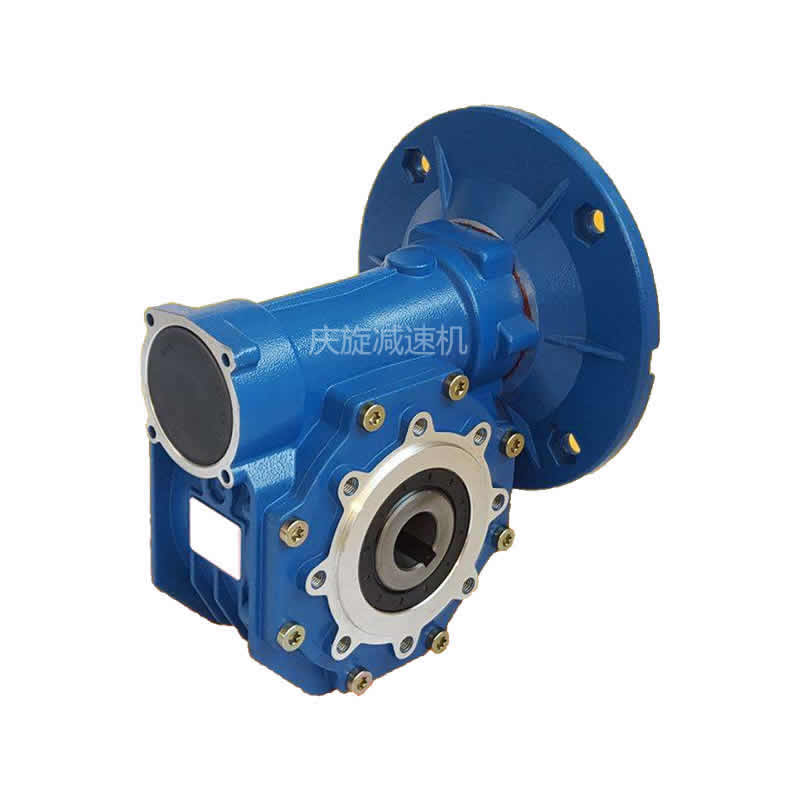

VF系列蜗轮蜗杆减速机

VF系列蜗轮蜗杆减速机，具有结构紧凑，质量可靠，多种安装位置可选以及可带扭矩限制器等特点，斜齿轮-蜗轮与双蜗轮减速可以组合提供更多驱动系统。 §额定机械功率(N1=1400min-1):0.04kw...75kw §速比:7....10,000 §输出型式: 单键空心轴 实心轴输出 扭矩限制器(可先项) §输入型式: IEC电机安装法兰 实心输入轴 §交流电机: 一体式电机与制动电机-M系列

VF系列蜗轮蜗杆减速机具体型号
30,44,49,63,72,86,110,130,150,(VF) 44,49,63,72,86,110,130,150,(VFR) 30/40,30/49,63/44,72/44,86,49/110,63/130,86/150(VF/VF)
　产品参数：
　　A、型号：VF30～150
　　B、输出转速：0.3~400r/min
　　C、输出转矩：11~2700N.m
　　D、功率范围：0.04～15kw
　　E、适用范围：VF系列蜗轮减速机广泛应用于VF系列减速机适用于食品、炊事机械、印刷机械、木工机械、小型纺织机械、橡胶机械、小型化工机械、塑料机械等。

　产品特点：
1.机械结构紧凑、体积轻巧、小型高效
2.热交换性能好，散热快
3.安装简易、灵活轻捷、性能优越、易于维护检修
4.传动速比大、扭矩大、承受过载能力高
5.运行平稳,噪音小,经久耐用
6.适用性强、安全可靠性大



The VF series worm gear reducer has the characteristics of compact structure, reliable quality, multiple installation positions to choose from, and can be equipped with torque limiters. The combination of helical gear worm gear and double worm gear reducer can provide more driving systems. § Rated mechanical power (N1=1400min-1): 0.04kw... 75kw § Speed ratio: 7... 100000 § Output type: Single key hollow shaft solid core shaft output torque limiter (optional) § Input type: IEC motor mounting flange solid input shaft § AC motor: Integrated motor and brake motor-M series

VF series worm gear reducer specific model
30, 44, 49, 63, 72, 86110130150, (VF) 44, 49, 63, 72, 86110130150, (VFR) 30/40, 30/49, 63/44, 72/44, 86, 49/110, 63/130, 86/150 (VF/VF)

Product parameters:
A. Model: VF30~150
B. Output speed: 0.3~400r/min
C. Output torque: 11-2700N. m
D. Power range: 0.04-15kw
E. Scope of application: VF series worm gear reducers are widely used in food, cooking machinery, printing machinery, woodworking machinery, small textile machinery, rubber machinery, small chemical machinery, plastic machinery, etc.

Product features:
1. Compact mechanical structure, lightweight, small and efficient size
2. Good heat exchange performance and fast heat dissipation
3. Easy installation, flexible and lightweight, superior performance, and easy maintenance and repair
4. High transmission speed ratio, high torque, and high overload capacity
5. Smooth operation, low noise, and durability
6. Strong applicability, high safety and reliability
