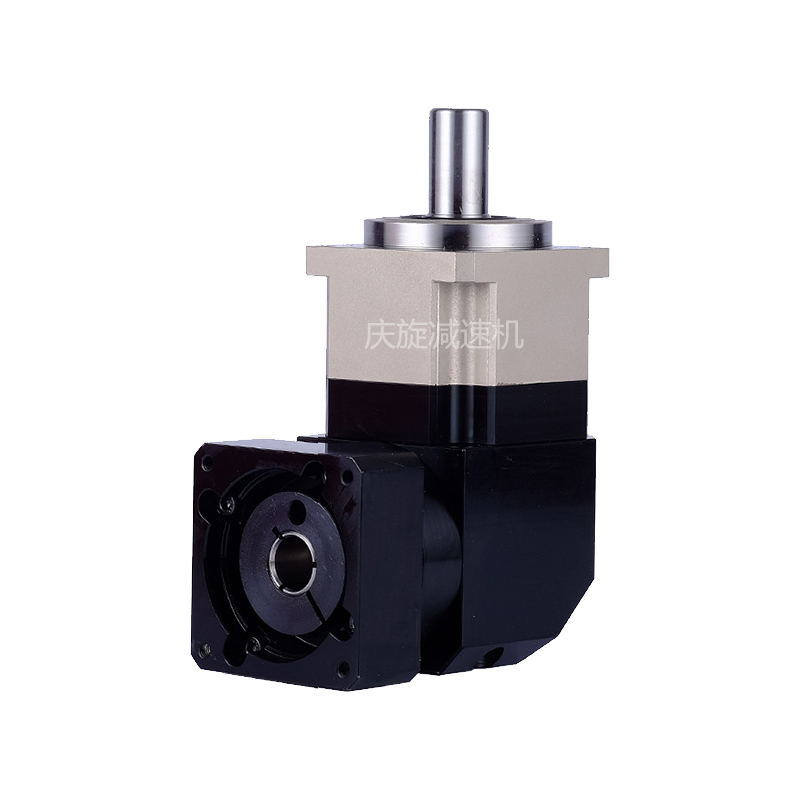

NBR斜齿直角高精度精密行星

斜齿行星齿轮减速机：
1、输入动力源：伺服电机、步进电机、直流电机及宾他
2、输入方式：空心孔输入、实心输输入、花键输入
3、减速机本体：圆形本体 （ HL）、方形本体（PX)
4、输出方式：空心孔输出、实心辅输出、胀紧套输出、盘式输出
5、安装方式：水平安装、竖直向下安装、竖直向上安装、带地脚安装
另外所有系列的外形尺寸仅作为客户选择参考，具体以双方签字确认的外形图为准。

特点：
1 、 利用 Ansys 技术对齿轮强度进行有限元分析 ， 同时对螺旋齿面作齿形和导程修整， 以降低齿轮啮合的冲击和躁音， 增加齿轮系的使用寿命。
2、齿轮材料选用优质低碳合金钢，经过渗碳淬火达到HRC60左右 ， 使用离精密机床加工， 保证齿轮的精度在IS05级以下， 从而获得最佳的耐磨性相耐冲击性；
3、齿圈与输出法兰采用一体化设计， 采用优质钢穗，经热锻成形 ，从而获得很高的材料密度。 体化设计能保证所有几何尺寸 夹装式等结何相比真萄更高的精度和强度；
4、行星轮轴承采用不含保持架之满滚针输承，增大速机输出扭矩和刚性；
5、采用笼式行星架和输出轴一体化， 两端轴承支撑， 确保更高强度和精度；
6、输入轴与电机采用份体式夹紧 ，经过动平衡测试，确保在高输入转速时的同轴度和零背隙动力传动；
7 、使用全合成油脂，饺IP65防沪等级的密封设计，确保润滑油不泄漏免维护。


精密行星减速机系列：

具有高精度、高钢性、高负载、高效率、高速比、高寿命、低惯性、低振动、低噪音、低温升、外观美、结构轻小、安装方便、精确定位等特点。适用于交流伺服马达、直流伺服马达、步进马达、液压马达的增速与减速传动。适合于全球任何厂商所制造的驱动产品连接,如：松下、台达、安川、富士、三菱、三洋、西门子、施耐德、法那克、科比、科尔摩根、AMK、帕克等等。

安装为方形法兰设计，安装尺寸简单方便。型号分：ZB40、60、90、115、142、190、240、280、330、400机座型号。速比：1-1000有19种比速可选择;分一、二、三级变减速传动;精度：一级传动精度在6-8弧分，二级传动精度在8-10弧分，三级传动精度12-15弧分;等1000多种规格。

Helical planetary gear reducer:
1. Input power sources: servo motor, stepper motor, DC motor, and Penta
2. Input methods: hollow hole input, solid input, spline input
3. Gearbox body: circular body (HL), square body (PX)
4. Output methods: hollow hole output, solid auxiliary output, expansion sleeve output, disc output
5. Installation method: horizontal installation, vertical downward installation, vertical upward installation, and installation with feet

In addition, the external dimensions of all series are only for customer selection reference, and the specific external drawings confirmed by both parties shall prevail.

Features:

1. Using Ansys technology to conduct finite element analysis on gear strength, while modifying the tooth profile and lead of the spiral tooth surface, in order to reduce the impact and noise of gear meshing and increase the service life of the gear system.
2. The gear material is made of high-quality low-carbon alloy steel, which has been carburized and quenched to reach around HRC60. It is processed using high-precision machine tools to ensure that the accuracy of the gear is below IS05 level, thereby obtaining the best wear resistance and impact resistance;
3. The gear ring and output flange adopt an integrated design, using high-quality steel spikes that are hot forged to achieve high material density. Body design can ensure higher accuracy and strength in all geometric dimensions of clamping structures compared to real grapes;
4. The planetary gear bearings adopt full needle roller bearings without retaining frames to increase the output torque and rigidity of the high-speed machine;
5. Adopting a cage type planetary carrier and integrated output shaft, supported by bearings at both ends, ensuring higher strength and accuracy;
6. The input shaft and motor are clamped in a split type and undergo dynamic balance testing to ensure coaxiality and zero backlash power transmission at high input speeds;
7. Using fully synthetic grease, the dumpling has an IP65 anti Shanghai sealing design, ensuring that the lubricating oil does not leak and is maintenance free.

Precision planetary reducer series:

It has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, long service life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light and small structure, convenient installation, and precise positioning. Suitable for increasing and decreasing speed transmission of AC servo motors, DC servo motors, stepper motors, and hydraulic motors. Suitable for connecting drive products manufactured by any manufacturer worldwide, such as Panasonic, Delta, Yaskawa, Fuji, Mitsubishi, Sanyo, Siemens, Schneider, Fanuc, Kobe, Morgan, AMK, Parker, and more.

The installation is designed with a square flange, and the installation size is simple and convenient. Model classification: ZB40, 60, 90, 115, 142, 190, 240, 280, 330, 400 base models. Speed ratio: There are 19 speed ratios to choose from between 1-1000; Divided into one, two, and three levels of variable speed drive; Accuracy: The first level transmission accuracy is 6-8 arc minutes, the second level transmission accuracy is 8-10 arc minutes, and the third level transmission accuracy is 12-15 arc minutes; Waiting for over 1000 specifications.
