K系列螺旋锥齿轮减速机

速比范围:基本型5.36~197.37,K/R系列组合型可达到32625
扭矩范围:200~50000 Nm
功率范围:0.18~200 kW
可底脚式、法兰式、轴装式安装,可带输入轴或各类电机直联。
  • 基本资料
  • 基本型式

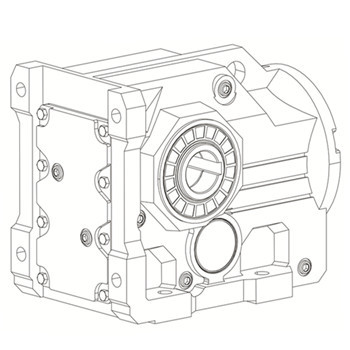

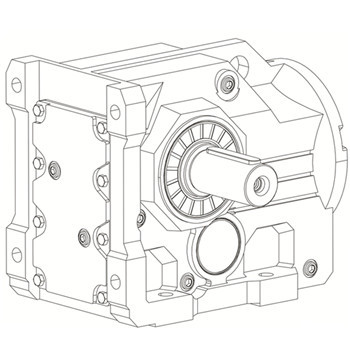

    产品代号:K..

    产品说明:三级弧齿+斜齿轮减速传动;底脚安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: K

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Foot installation; The reduction ratio range is 3.98 to 197.37; Transmission power range: 0.12-200kW.





    产品代号:KA..B

    产品说明:三级弧齿+斜齿轮减速传动;底脚空心轴安装;减速比范围4.64~197.37;传递功率范围0.12~200kW。

    Product code: KA B

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.





    产品代号:KH..B

    产品说明:三级弧齿+斜齿轮减速传动;底脚空心轴锁紧盘安装;减速比范围4.64~197.37;传递功率范围0.12~200kW。

    Product code: KH B

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.

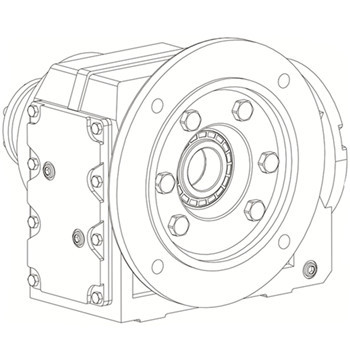

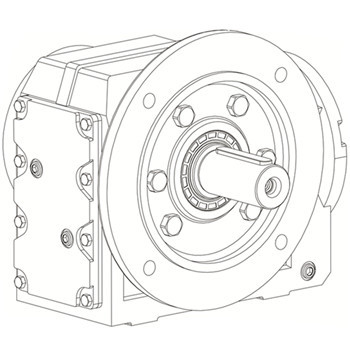

    产品代号:KF..

    产品说明:三级弧齿+斜齿轮减速传动;B5法兰安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KF

    Product Description: Three stage spiral tooth+helical gear reduction transmission; B5 flange installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

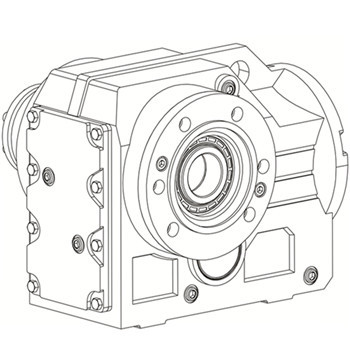

    产品代号:KAF..

    产品说明:三级弧齿+斜齿轮减速传动;B5法兰空心轴安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KAF

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

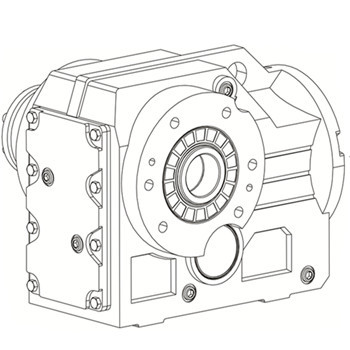

    产品代号:KHF..

    产品说明:三级弧齿+斜齿轮减速传动;B5法兰空心轴锁紧盘安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KHF

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

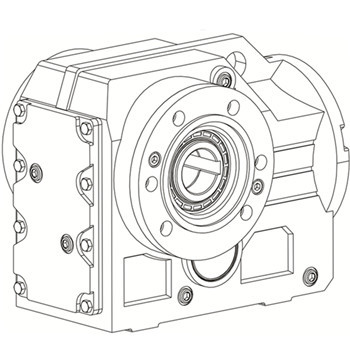

    产品代号:KA..

    产品说明:三级弧齿+斜齿轮减速传动;空心轴安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KA

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.

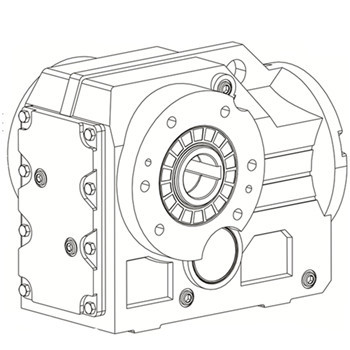

    产品代号:KH..

    产品说明:三级弧齿+斜齿轮减速传动;空心轴锁紧盘安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KH

    Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.





    产品代号:KAZ..

    产品说明:三级弧齿+斜齿轮减速传动;B14法兰空心轴安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KAZ

    Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.





    产品代号:KHZ..

    产品说明:三级弧齿+斜齿轮减速传动;B14法兰空心轴锁紧盘安装;减速比范围3.98~197.37;传递功率范围0.12~200kW。

    Product code: KHZ

    Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft locking plate installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.





    组合应用

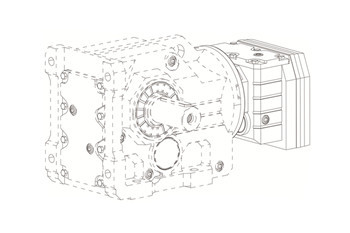

     产品代号:K../RF..

    产品说明:为得到特别低的输出转速,可以将RF减速机做为K减速机的输入。

    Product code: K/ RF

    Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the K gearbox.

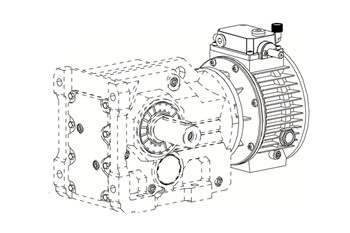

    产品代号:K../UD..

    产品说明:为得到特别低并且可以连续变化的输出转速,可以将UD无级变速器做为K减速机的输入。

    Product code: K/ UD

    Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the K gearbox.
